Product Overview
This is a denim spraying robot workstation designed for automated spraying processes in denim finishing.
The system replaces manual spraying operations with a more consistent and repeatable workflow. Using drag-teach functionality and pre-set programs, it eliminates the need for complex programming while maintaining stable spraying quality.
It is suitable for production environments that require:
•
consistent finishing results
•
reduced manual dependency
•
improved production efficiency
Key Benefits
This workstation improves spraying operations through simplified operation, stable quality output, flexible adaptation, and reliable system performance.

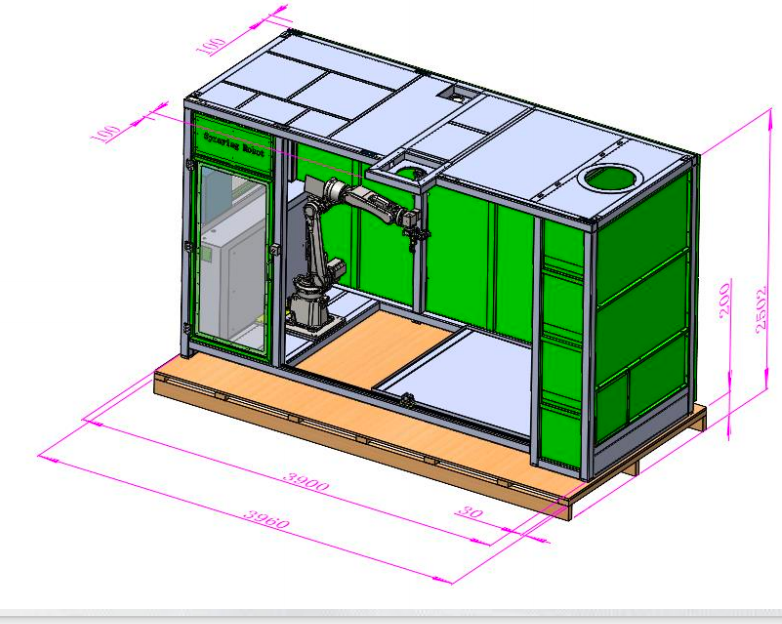

Workstation Configuration
How It Works
•Spray paths are created using drag-teach programming
•No complex coding required
•Stored spray patterns can be recalled based on part geometry
•The robot executes spraying automatically once configured
•Adjustments can be made quickly by re-teaching the process
This workflow enables stable and repeatable spraying operations with minimal manual intervention.
Key Technical Data
Rated Voltage
220 V
Rated Power
10 kW
Rated Current
40 A
Total Weight
1.4 tons
Overall Dimensions
3898 × 1565 × 2300 mm
Air Pressure Requirement
≥ 0.8 MPa
Site Requirement
Independent 63A leakage protection circuit required on-site
Core Components

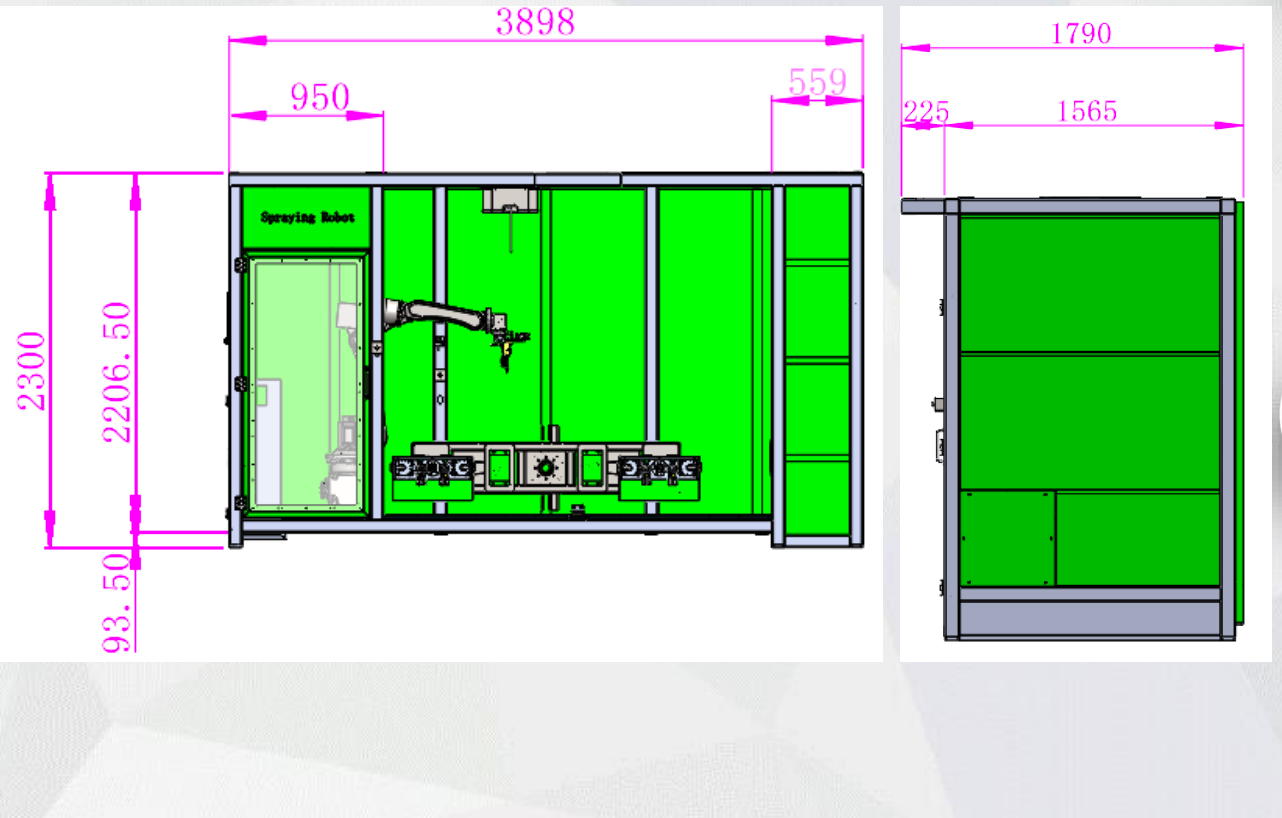

Workstation Structure
Shipping & Container Reference
Container Loading
• Fits into a 40-foot standard container
• Up to 3 workstations per container
Additional Note
The loading configuration allows for efficient international shipment and can be used as a reference for logistics planning and site preparation.
